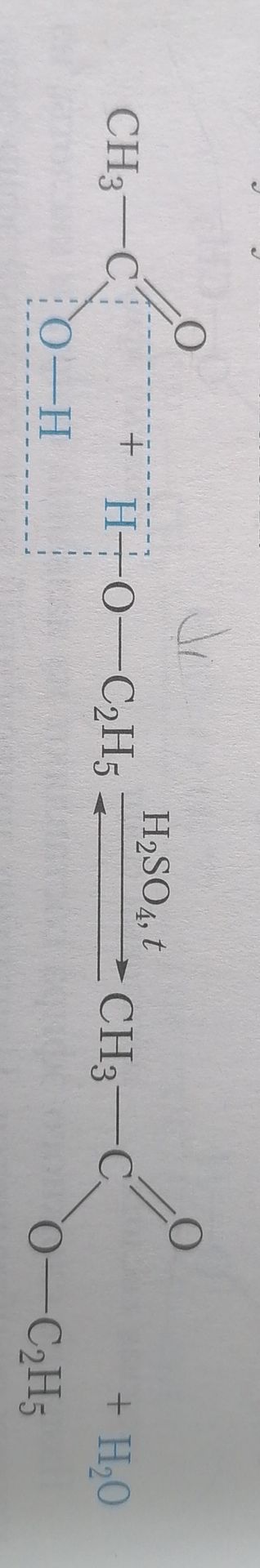

The image shows a chemical reaction. Identify the reactants and products and describe the reaction.

Chemical Reaction Analysis

The image depicts a chemical reaction involving an esterification process, likely the Fischer esterification, catalyzed by sulfuric acid.

Reactants:

• The first reactant shown is CH₃COOH (Acetic acid).
• The second reactant shown is C₂H₅OH (Ethanol).

Products:

• The primary product shown is CH₃COOC₂H₅ (Ethyl acetate), which is an ester.
• The other product is H₂O (Water).

Catalyst/Conditions:

The reaction is indicated to be carried out in the presence of H₂SO₄ (Sulfuric acid), typically as a catalyst, and with heating (indicated by 't').

Reaction Description:

The reaction is an esterification where a carboxylic acid (acetic acid) reacts with an alcohol (ethanol) in the presence of an acid catalyst (sulfuric acid) and heat to form an ester (ethyl acetate) and water. This is a reversible reaction.

Overall Reaction:

\[ CH_3COOH + C_2H_5OH + \xrightarrow{H_2SO_4, t} \; CH_3COOC_2H_5 + H_2O \]
