Provide a detailed breakdown of the image, identifying and describing each numbered component based on the visual information and common automotive engineering knowledge.

Analysis of Automotive Component Diagram

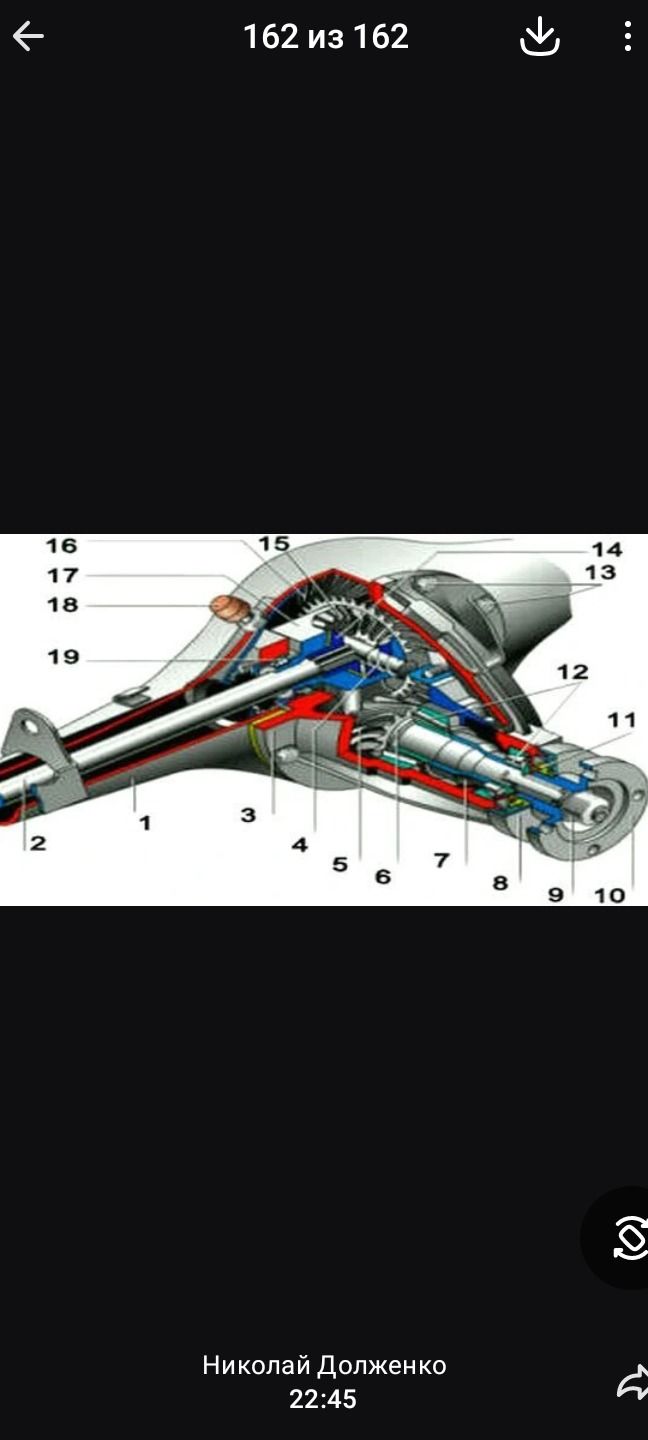

The image displays a cutaway view of an automotive differential assembly, with various components labeled with numbers. Based on typical differential architecture and visual cues, the components can be identified as follows:

Component Identification:

• 1: Drive Shaft / Pinion Shaft: This appears to be the input shaft that transmits rotational force from the engine/transmission to the differential.


• 2: Differential Housing / Case: The main body that encloses the internal gears of the differential.


• 3: Pinion Gear: Attached to the end of the drive shaft (1), it meshes with the ring gear.


• 4: Ring Gear: A large gear that meshes with the pinion gear (3), transferring the rotational motion at a different ratio and direction.


• 5: Differential Pin (Spider Gear Shaft): A shaft on which the spider gears rotate.


• 6: Spider Gears (Pinion Gears within the differential): These gears are mounted on the differential pin (5) and allow the wheels to rotate at different speeds when turning.


• 7: Side Gears: Gears splined to the axle shafts, which mesh with the spider gears (6).


• 8: Axle Shaft / Output Shaft: Transmits power from the side gears to the wheel hub.


• 9: Bearing: Supports the ring gear and/or axle shaft.


• 10: Bolt / Fastener: Secures a component, likely the differential housing cover or bearing cap.


• 11: Output Flange / Flange: The connection point for the axle shaft to the wheel assembly or further drivetrain components.


• 12: Differential Case Cover: Covers the internal gearing of the differential.


• 13: Bearing Cap: Secures the differential bearings and housing.


• 14: Seal: Prevents lubricant leakage.


• 15: Lubrication Passage / Oil Gallery: Channels for lubricant distribution.


• 16: Vent / Breather: Allows pressure equalization within the housing.


• 17: Gasket / Sealant: Used to seal mating surfaces of the housing.


• 18: Differential Case Body: The main rotating part of the differential that holds the spider gears.


• 19: Mounting Point / Bracket: For attaching the differential assembly to the vehicle chassis or suspension.

Note: Precise identification without a legend is based on typical automotive differential design. The exact function and naming may vary slightly depending on the specific vehicle model and manufacturer.

Answer: The image shows a cutaway view of an automotive differential. Key identified components include the drive shaft (1), differential housing (2), pinion gear (3), ring gear (4), spider gears (6), side gears (7), and axle shafts (8), among others, illustrating the mechanism for transmitting power to the wheels and allowing for differential wheel speeds during turns.
