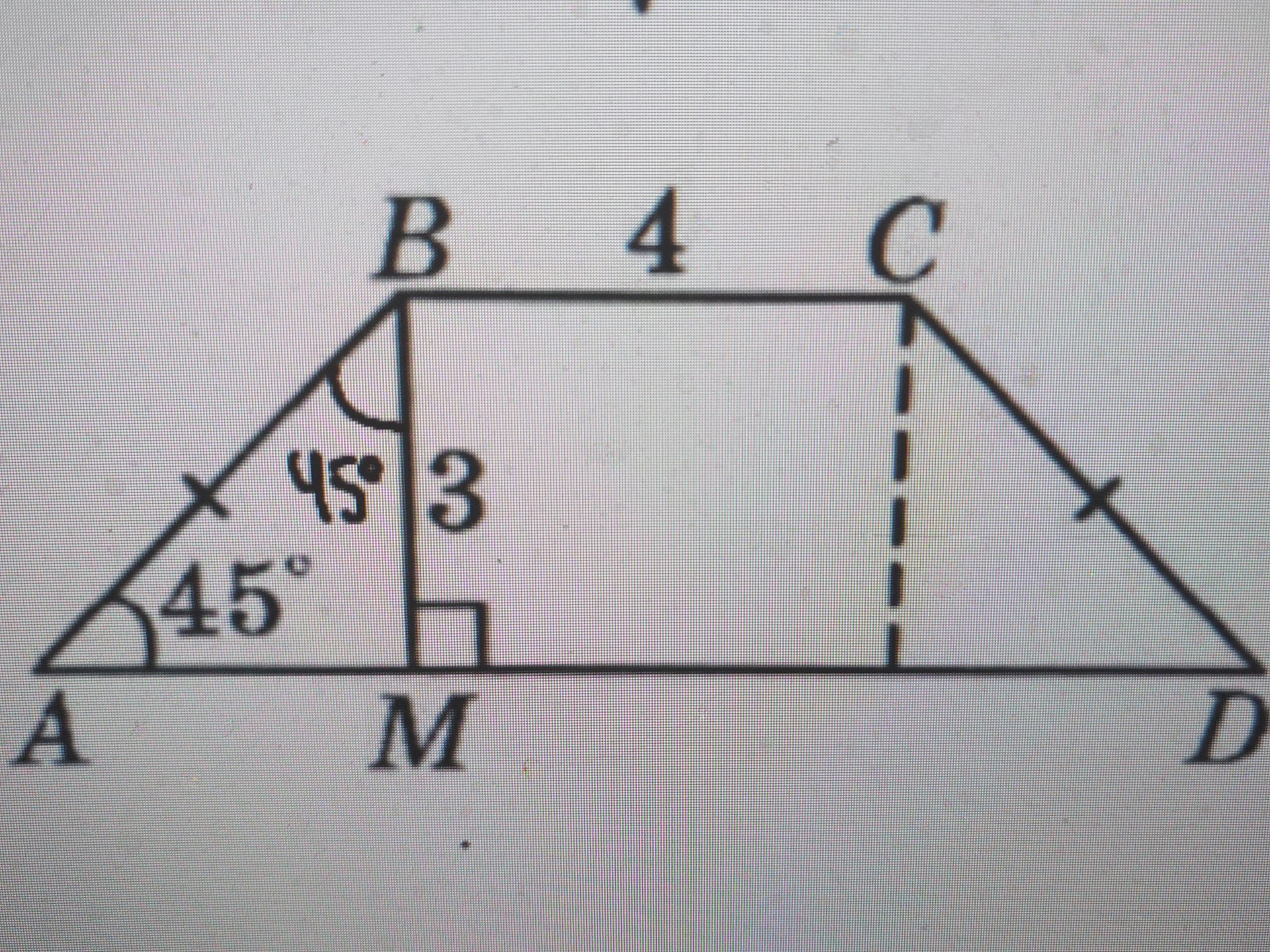

Find the area of the trapezoid ABCD.

Solution:

The given figure is a trapezoid ABCD. We are given the following information:

• The length of the top base BC is 4.
• The height of the trapezoid is 3 (indicated by the perpendicular segment from B to AD, meeting AD at M).
• The angle at A is 45 degrees.
• Triangle ABM is a right-angled triangle, with angle AMB = 90 degrees.
• Since angle BAM = 45 degrees and angle AMB = 90 degrees, the third angle ABM must also be 45 degrees (180 - 90 - 45 = 45). This means triangle ABM is an isosceles right-angled triangle, so AM = BM.
• Since BM is the height, BM = 3. Therefore, AM = 3.
• We are given that BC = 4.
• The trapezoid is likely isosceles due to the markings on sides AB and CD, and the symmetry implied by the angles. If it is an isosceles trapezoid, then the lengths of the non-parallel sides are equal, and the segments from the vertices of the shorter base to the longer base are equal. Thus, if we drop a perpendicular from C to AD at point N, then CN = BM = 3 and DN = AM = 3.
• The length of the bottom base AD is AM + MN + ND. Since BCMN forms a rectangle (BM is perpendicular to AD, CN is perpendicular to AD, and BC is parallel to AD), MN = BC = 4.
• Therefore, AD = 3 + 4 + 3 = 10.
• The area of a trapezoid is given by the formula: \( \text{Area} = \frac{1}{2} (\text{sum of bases}) \times \text{height} \)
• Area = \( \frac{1}{2} (AD + BC) \times BM \)
• Area = \( \frac{1}{2} (10 + 4) \times 3 \)
• Area = \( \frac{1}{2} (14) \times 3 \)
• Area = \( 7 \times 3 \)
• Area = 21

Ответ: Площадь трапеции ABCD равна 21.
