Analyze the provided image and describe the optical setup shown.

Optical Setup Analysis:

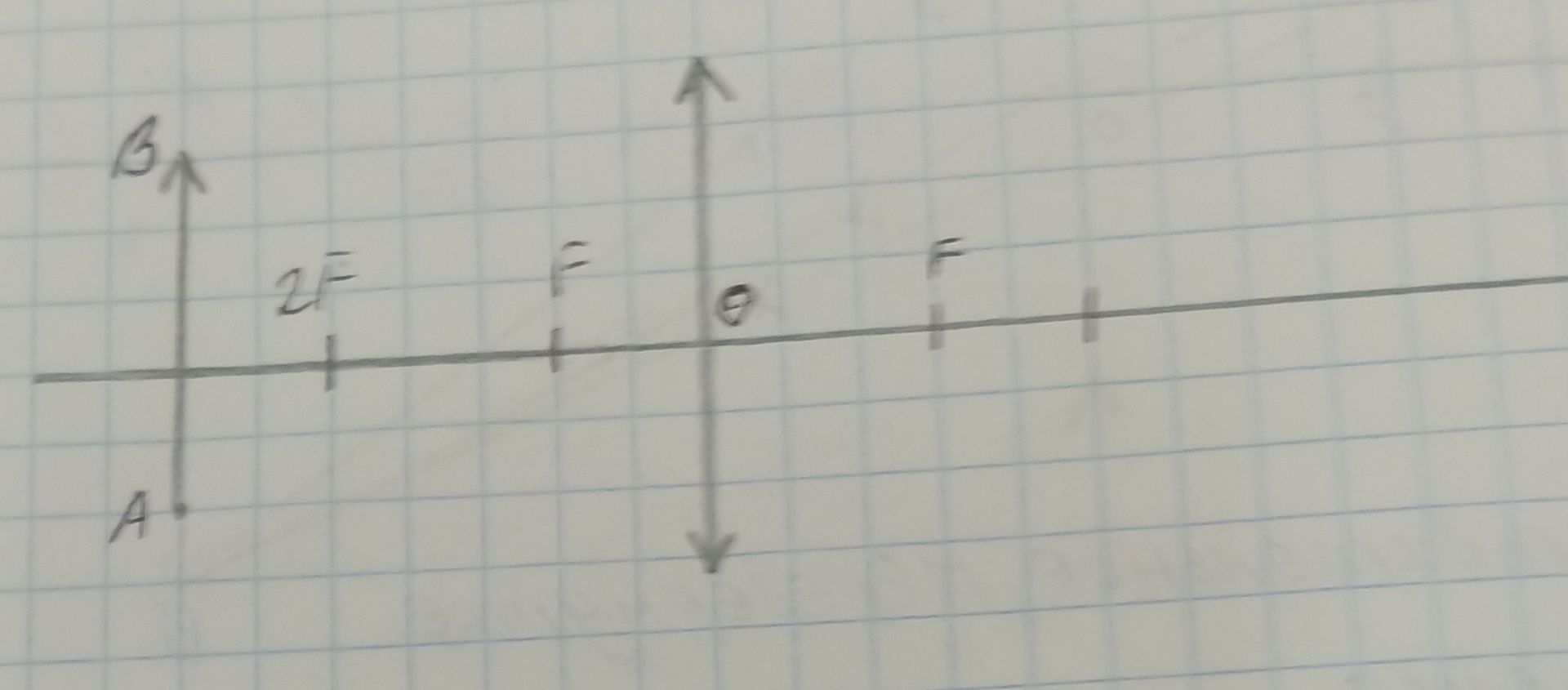

The image depicts a diagram illustrating optical principles, likely related to lenses or mirrors. A horizontal line represents the principal axis. Key points are marked on this axis: 'O' which typically denotes the optical center of a lens, and 'F' which represents the focal points on both sides of the optical center. There are also points marked as '2F', indicating twice the focal length. Vertical lines are used to represent objects or apertures. One such line is labeled 'AB', with 'A' at the bottom and 'B' at the top, suggesting an object of finite height placed perpendicular to the principal axis. An upward arrow indicates the direction of the object 'B'. Another vertical line with arrows pointing up and down is positioned at the optical center 'O', likely representing a converging lens, due to the symmetrical placement of focal points and the representation of light rays passing through it.

The arrangement suggests a scenario for ray tracing to determine image formation by a converging lens. The object 'AB' is placed at a distance greater than 2F from the lens, indicated by its position to the left of '2F'. This setup is commonly used to demonstrate how a converging lens forms a real, inverted, and diminished image between F and 2F on the opposite side.
